1、 The main types of medical automatic doors are:
1. Inductive automatic door:
-Infrared sensing: detecting human or object through infrared sensors to achieve contactless switching.
-Microwave induction: higher sensitivity, suitable for areas with high pedestrian flow (such as emergency room entrances).
2. Foot touch to open and close the door:
-Control the opening and closing of doors through foot switches to avoid hand contact and reduce the risk of cross infection (commonly used in isolation wards, operating rooms, and sterile rooms).
3. Swipe card/password door:
-Authorized personnel are required to swipe cards or enter passwords to ensure the security of specific areas (such as pharmacies and laboratories).
2、 Core functions and advantages:
1. Health protection:
-Material antibacterial (such as stainless steel, antibacterial coated glass), easy to clean and disinfect.
-Contactless operation reduces the risk of infection.
2. Safety design:
-Anti pinch function: The door automatically rebounds or stops when it encounters resistance.
-Emergency mode: Can be manually activated during power outages, in compliance with fire safety regulations.
3. Efficient passage:
-Quick response (adjustable door opening speed), suitable for large equipment such as wheelchairs and hospital beds to pass through.
4. Silent operation:
-Low noise motor and slide rail design to avoid interfering with patient rest.
3、 Applicable scenarios:
|Scenario | Requirement Characteristics | Recommended Door Type|

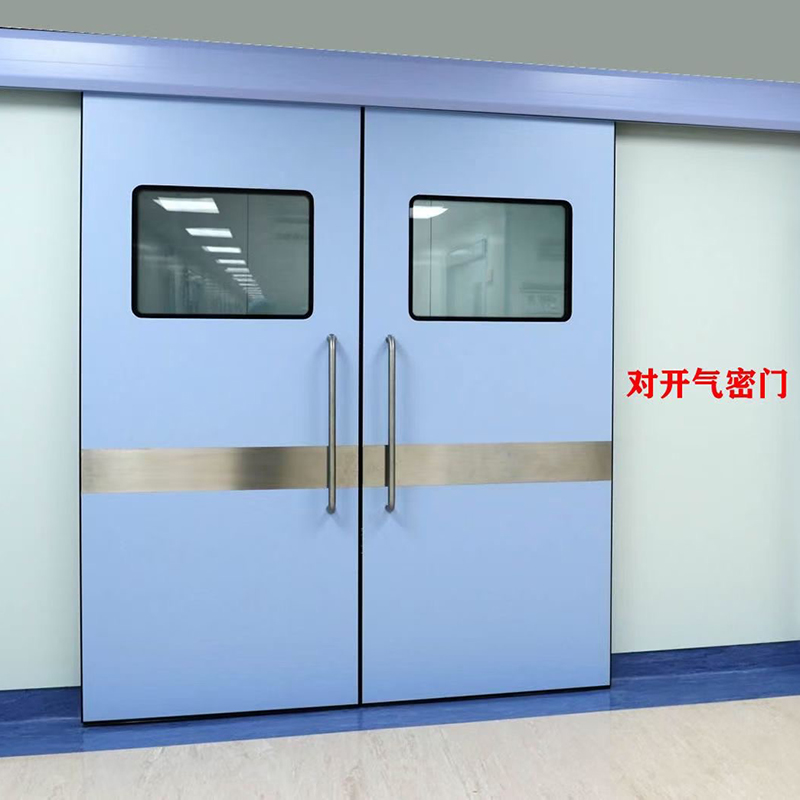

|Operating room/sterile room | High cleanliness and airtightness | Airtight automatic door+foot touch switch|
|Emergency room/outpatient hall | High frequency use, fast passage | Infrared sensor door+anti-collision design|
|Pharmacy/Laboratory | Permission Control, Security | Card Swipe/Password Door+Recording Function|

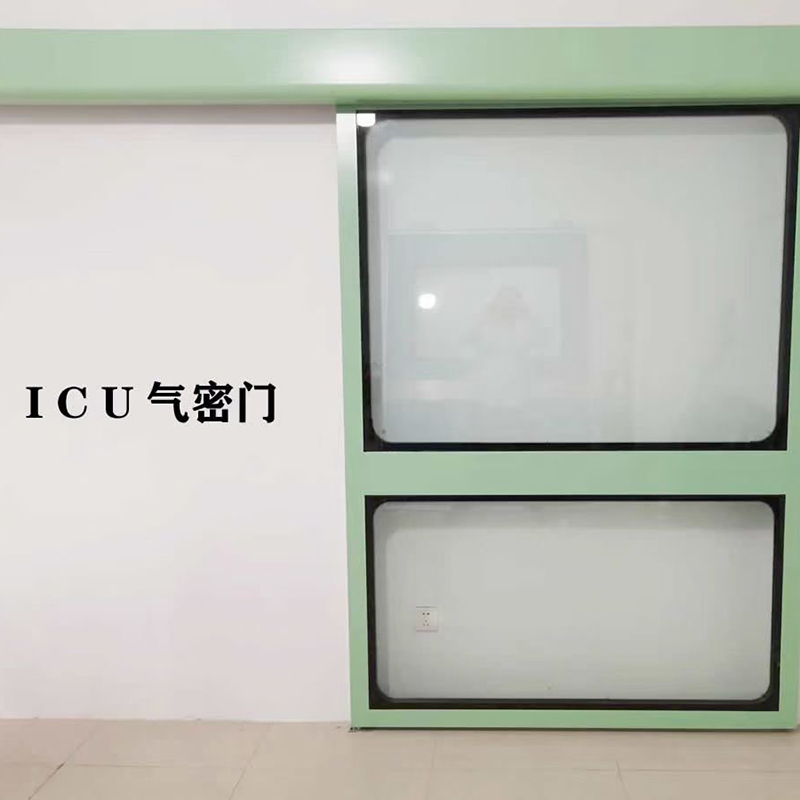

|Isolation ward | Preventing air pollution and easy disinfection | Airtight automatic door+antibacterial material|
4、 Precautions for selection and installation:
1. Compliance:
-Compliant with building standards for medical facilities (such as GB/T 34616-2017 "General Technical Requirements for Medical Doors").
-Certified for airtightness and antibacterial properties.
2. Customization requirements:
-Customize according to the size of the door opening and the opening direction (translation/flat opening).
-Optional auxiliary functions such as transparent windows and warning lights.
3. Maintenance and after-sales service:
-Regularly clean the track and check the sensitivity of the sensors.
-Choose a supplier that provides 24-hour emergency services.
